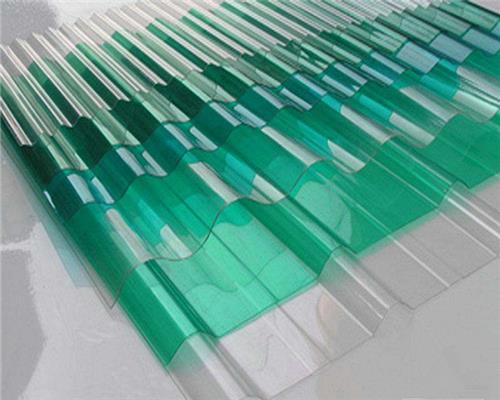

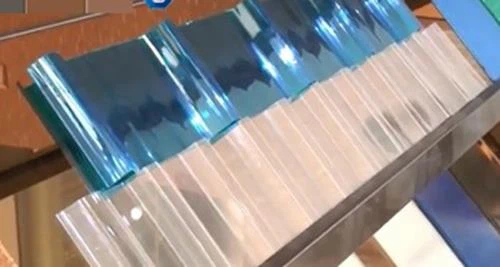

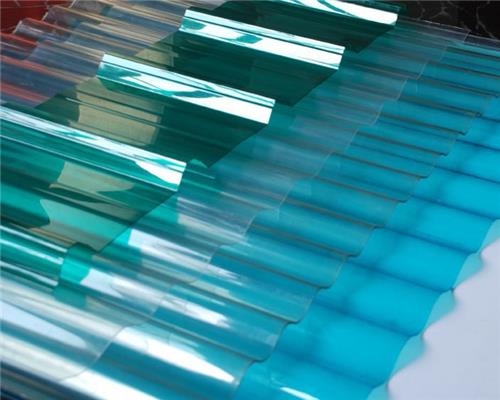

Polycarbonate Corrugated Ladder Board

Product description:

TIANSU polycarbonate corrugated roofing sheetadvantage:

1) Makrolon PC resin from Bayer in Germany.

2) Omipa UV-PC coextrusion lines (6 lines).

3) ISO 9001: 2008 & ISO 14000 proved.

4) UV co-extrusion for long life-span.

5) Light transmission rate up from 25%-88%.

6) Customized colors and dimensions available upon request.

Specification

1) Item Name: Polycarbonate sheet

2) Color: Clear, Bronze, Blue, Lake-blue, Green, Grass-green, White, Red, Grey, Yellow, Purple, Orange,etc.

Applications of Polycarbonate Sheet

1. Lighting

2. Indoor windows and doors

3. Riot windows and doors

4. Display and Observe windows

5. Showing box in shop and museum

6. Advertising Panel

7. Sound barrier

8. Awning and Carport

9. Indoor partition

10.Good weather resistance

Specification

Item Polycarbonate corrugated sheet

Thickness 0.8mm-2.8mm

Overall Width 840mm

Length Produce according to customer request

UV Coating 1 side or 2 sides

Color Clear Opal Green Blue Bronze Lake-blue Yellow

Warranty 10 years

Wave height 26mm

Following our step-by-step instructions, it is quite simple to lay corrugated sheets:

Plan for a roof pitch of 10° (minimum 7°).

First, build a substructure with wooden or metal slats of 40 x 60 mm.

The distances between the slats should be max. 70 cm for average snow and wind loads. The distance should be reduced accordingly for regions with higher loads!

Subsequently, cover the slats with silver masking tape.

The next step is to lay the polycarbonate corrugated sheets. Beginning at the eaves, lay the corrugated sheets towards the roof ridge, always working against the prevailing wind direction. Stagger the sheets in order to avoid corner cuts or quadruple overlaps. Begin the first row with a whole sheet, and the second with a half sheet.

Continue this process, alternating the sheet length each time.

Next, pre-drill the plates with a plastic hole cutter.

The cross coverage should be one wave, or two waves for a roof pitch below 10°.

The longitudinal overlap should be min. 15 cm, or 20 cm for a roof pitch below 10°.

Next, attach the sheet with screws or additional calottes at each third wave crest, and each second crest along the edges and overlap areas. Lay using spacers.

Plan on 10 to 15 fixtures per square meter.

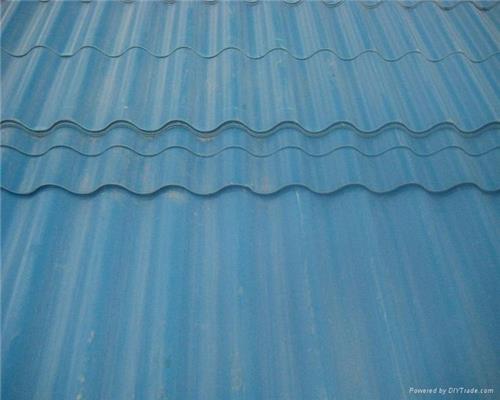

Corrugated is designed to be used in a variety of applications including windows, roofs, false ceilings, and room partitions. This pliable panel is impermeable to water, 1 side UV protected, and available in clear, bronze and opal color.

Vented tape goes along the bottom flutes and solid Aluminum tape along the top flutes. This prevents dust and bugs from making their way into flutes in addition to allowing moisture to escape.

The Connection of two Polycarbonate Panels can be achieved using the following:
