Anti-fog Polycarbonate Sheet

Our Anti-fog Technologies suit for Polycarbonate sheet, polycarbonate film, PMMA sheet, it’s a water-washable permanent coating. The application is very wild in visor area. Such as medical face shield, industrial personal safety protection face shield, electronics applications, helmet UV protection, Sandblasting helmet replacement and so on. Tiansu Anti-fog polycarbonate sheet has a cross-linked aqueous hydrophilic polymer composition that offers outstanding anti-fog permanence. The coating will not saturate or fail under very humid conditions and will retain anti-fog properties after repeated cleaning with commercial glass and lens cleaners.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Tiansu offers Anti-fog hard coating for your visor material.

Tiansu Anti-fog polycarbonate sheet has a cross-linked aqueous hydrophilic polymer composition that offers outstanding anti-fog permanence. The coating will not saturate or fail under very humid conditions and will retain anti-fog properties after repeated cleaning with commercial glass and lens cleaners.

Dental-Protective-Face-Mask

Anti-fog-polycarbonate-film

Features

Dimensional stability

Tintability

static properties

Embossability

Die cuts very well without debris resulting in low yield loss

Both sides printable

Abrasion resistance, Chemical & Impact Resistance

Compatible with Mirror Coating Treatments

Hydrophilic

Anti-Fog Properties

Water Washable (Permanent)

Typical Application

greenhouse

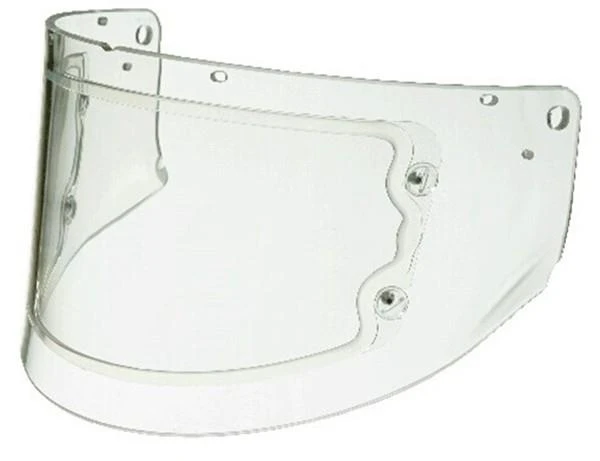

helmet

Mask

skylight

ceiling

safety eyewear

eye and face protection visor, goggles

sandblasting helmet lens

Masks & Face Shields.

Interior Coatings for Gauges & Headlamps

Clear-Anti-fog-face-shield

Anti-fog-face-shield

Tiansu Coating Technologies can deliver a variety of anti-fog coated films or sheets for many different applications, such as medical, industrial and commercial and safety protection or electronics applications.

Our anti-fog coatings can be used on a variety of different materials including polycarbonate sheet and films, PMMA films and sheets to special order parts and applications.

The coating will not saturate or fail under very humid environment and can retain anti-fog properties after repeated cleaning on the surface, it’s water washable.

Tiansu Anti-fog product also has abrasion resistance, chemical and Impact resistance features,

Material: Polycarbonate sheet, PMMA sheet(Acrylic sheet), PET sheet

Thickness: 0.125mm-5mm (standard thickness: 0.5mm,0.7mm,1.0mm,1.2mm)

Size: 930mm*1830mm and 1220*2440mm or cut to size

MARKETS SERVED

Construction & Building

(Conservatory/Greenhouses, Anti-fog Mirrors)

Automotive & Transit (Aerospace, Bus/Coach, Motorcycle, Rail etc.)

Commercial Freezer Display Cases

Electronics (HUD, LED, Digital Billboard Displays)

Medical & Chemical Safety protection

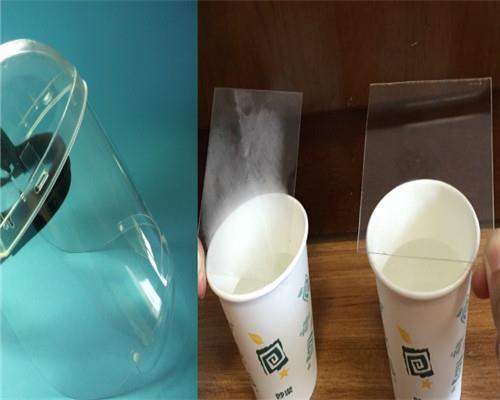

anti-fog-coating-1

Anti-Fog sheet Technical data

Product name:	Anti-Fog polycarbonate sheet
Size	930mm1830mm and 12202440mm;Thickness: 0.125mm-5mm
Coating Specification	Formable Anti-Fog CoatingAbrasion Resistance Hard Coating
Adhesion	100% Cross hatch adhesion ASTM D3359
Coating Thickness	9.0-15.0 Microns
Anti-fog	>3 mins @ 60℃ and >98% RH

TEST ITEMS			UNIT	SPEC.	RESULTS	TEST METHOD
Opticalproperties		Transmittance	%	Up 85	90.02	Haze meterJIS K7105
Opticalproperties		Haze	%	Down 1	0.61	Haze meterJIS K7105
Mechanicalproperties		Pencil hardness	–	HB	HB	Pencil testerJIS K5400
		Taber	%	Haze	<10	Taber CS10F/100 cycles at 500 g 5%ASTM D1044
		Cross cut	–	100/100	100/100	Cross cut test
		Anti-fog	–		>3 minutes	@122℉ >98% RH
Environment properties		High temperature		–	Ok	External appearance :No changeHardness : No change
		Hot Water test		–	Ok
		Thermal cycling		–	Ok
Chemicalproperties		DI WATER	25℃, 24hrs dipping		Ok	External appearance :No changeHardness : No change
		Methanol	100cycle rubbing		Ok
		Sulfuric acid (30%aq.)			Ok
		Acetone			Ok
